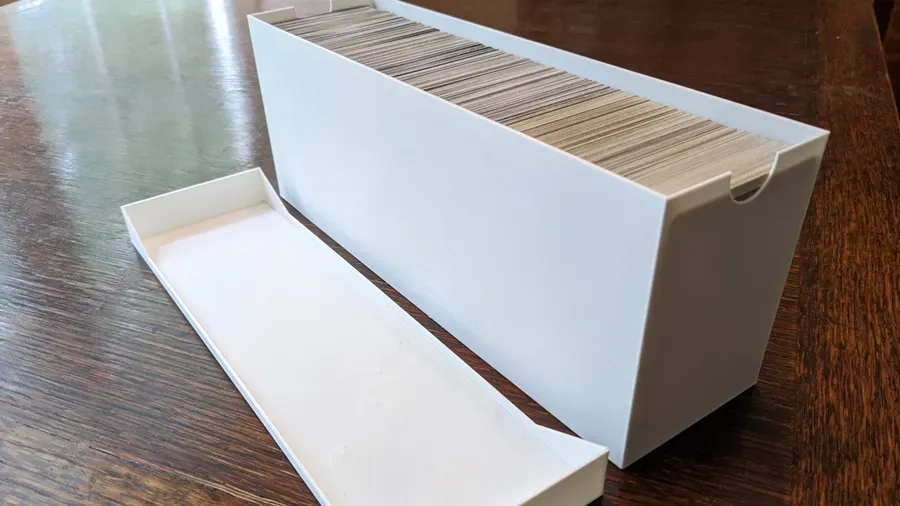

I made this top-load trading card box to store Magic: The Gathering cards I collected from centuries past. It will store around 800 cards and will fit cards having light sleeves. The lift-off lid has a 0.6mm width and length clearance gap from the main container, providing a comfortable fit. All walls are 1.2mm, giving it adequate strength with minimal material usage.

The depth is 250mm, so a printer with a larger bed is needed. I plan to create smaller models for smaller beds.

Interactive Model

Rotate, pan, and zoom to inspect the model.

3D model of the 250mm trading card storage box with its lift-off lid

Timelapse Video using Octolapse

Octolapse timelapse of the 250mm trading card box being printed.

Model Resources

The following are available for printing and customizing:

Estimated Resources

  • Print Time: 8hrs, 33min (with 150mm/s print speed)
  • Material Use: 138g, 46.42m

Sliced with Ultimaker Cura.

  • Resolution: 0.2mm
  • Support: none
  • Infill: n/a
  • Raft/Brim: none
  • Horizontal Walls: 3
  • Vertical Walls: n/a
